Huanqiu steel cord conveyor belts are excellent for long distance, high abusive and demanding applications.

Features:

high tensile strength, low extensibility, small used transmission pulley diameter, uniform steel wire rope tension, excellent troughbility and good adhesive between rubber and steel wire.



Applicable environment:

The belt realizes conveying a large amount of materials at long distance and at high speed in the fields of coal, mine, ports, metallurgy, electric power, chemical engineering, etc.

Technical parameters: The steel cord conveying belt has the general used, high abrasion, cold-resistant and flame-retardant according to the using requirement and the performance of the cover rubber.

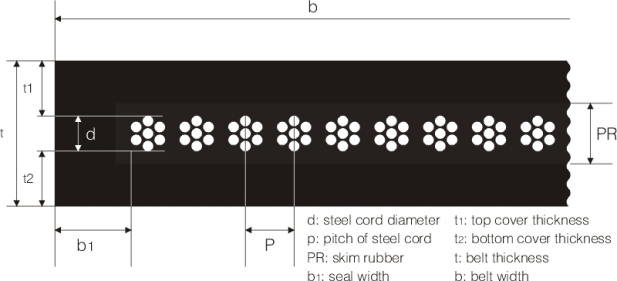

Specification:

Strength:630N/m----6300N/mm

Width (mm):800mm-2400mm

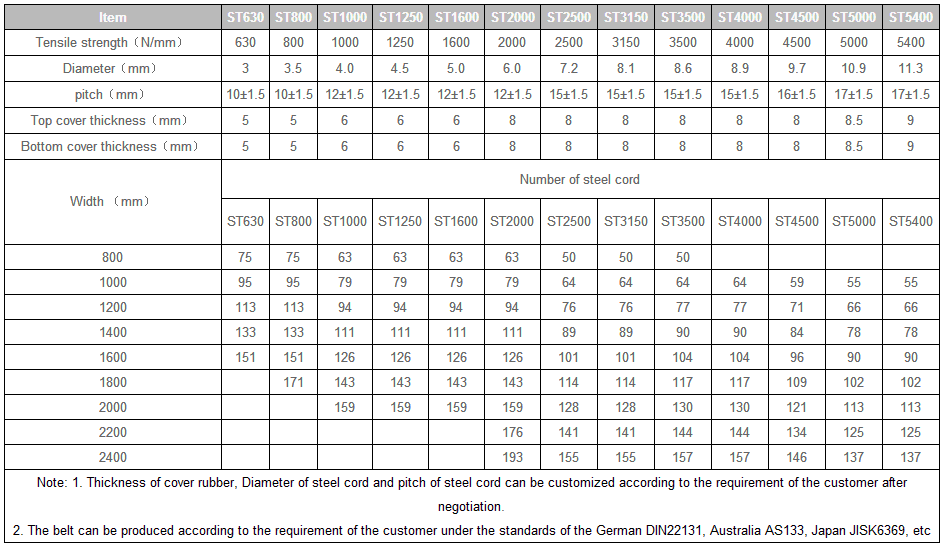

Technical Parameter

Standards

GB/T 7984-2001,DIN22102,BS490,AS1332,RMA,JISK6322,SABS1173 etc.
